RADIUSKITFOLLOW

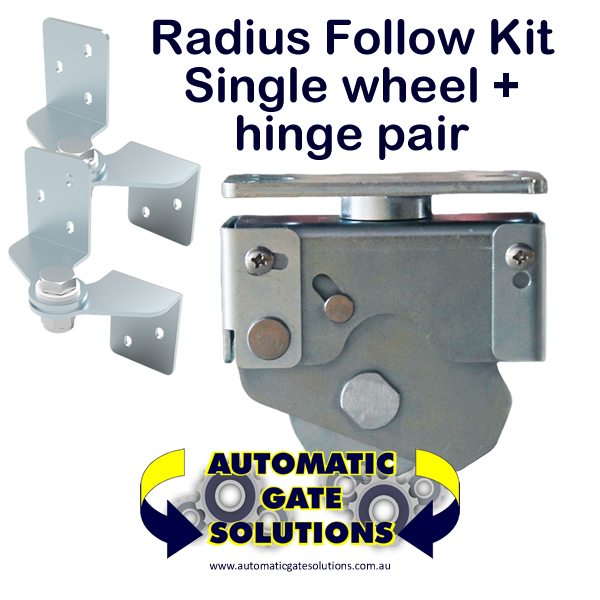

Radius Kit Follow

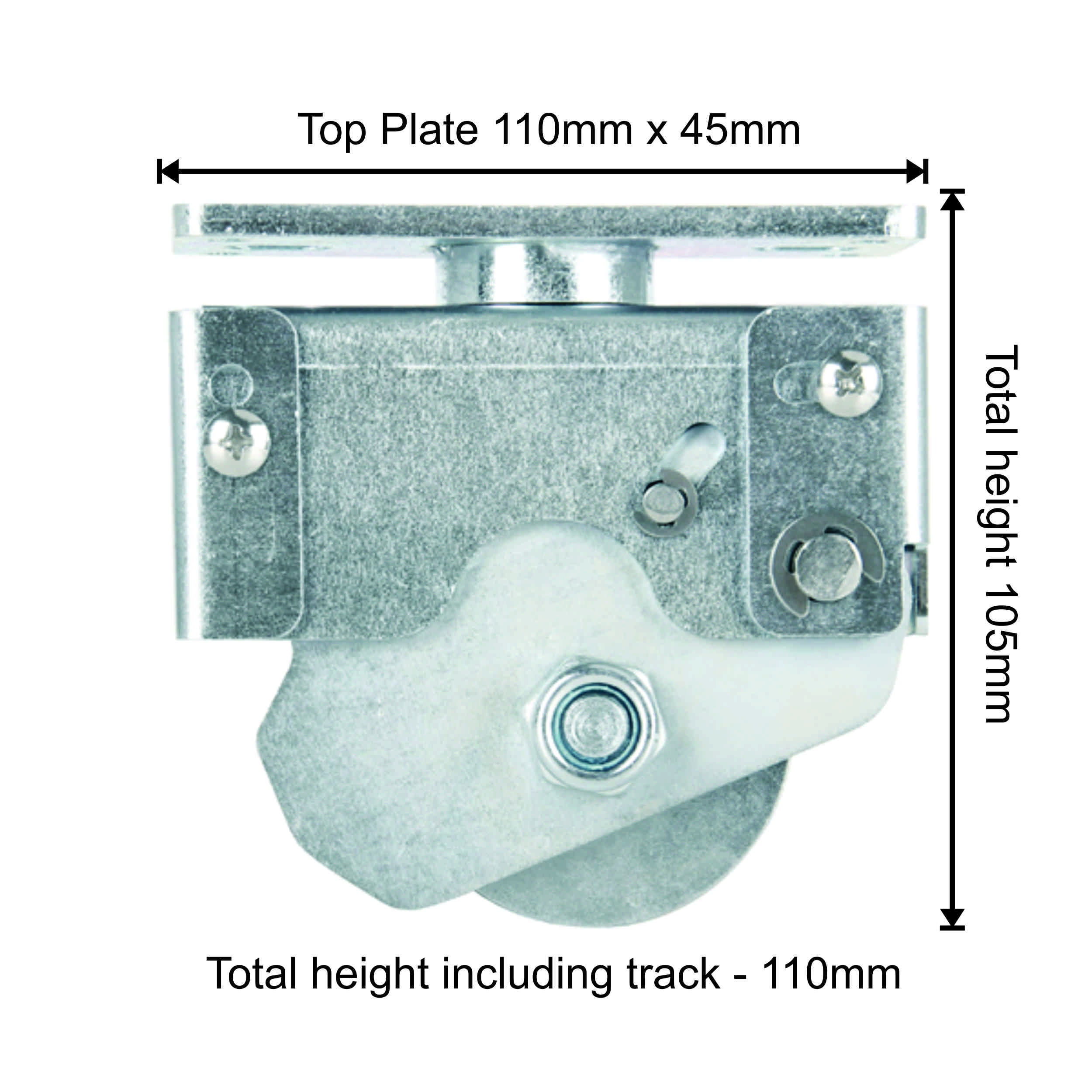

• 1 x RADIUSWHEEL

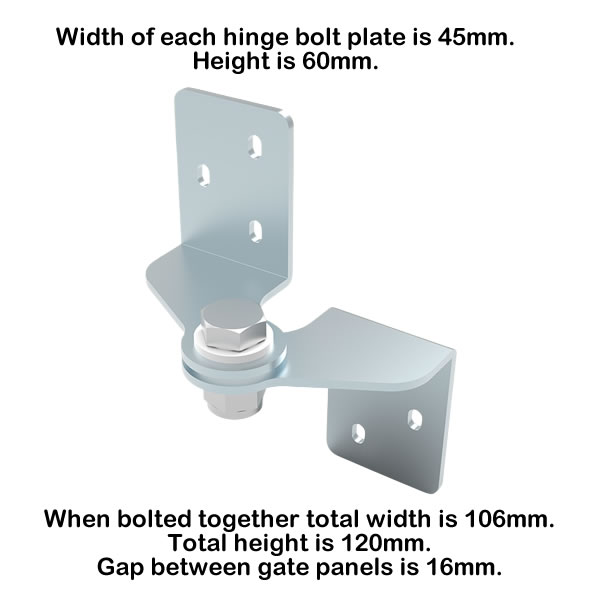

• 2 x RADIUSHINGE

Radius or corner sliding gate kits. Need your gate to slide around a corner in a limited space a radius corner kit may be just what you need. Radius gates are made up of a number of gate panels (usually four or five) that are hinged together and have pivoting wheels.
Every radius gate has a “lead” panel and the remaining panels are referred to as “follow” panels.
Your radius can be custom made in terms of radius and degrees but the normal is 90 degrees and 800mm radius allowing panels up to 1200mm wide.
