ASA6000

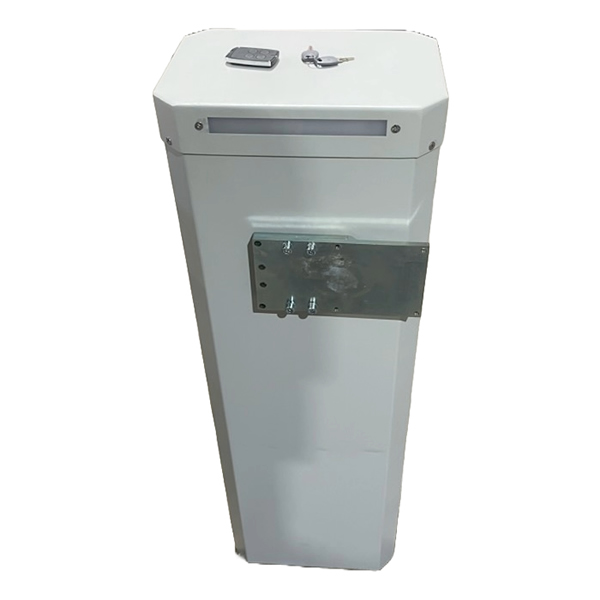

ASA6000 – 4 metre to 6 metre boom gate

$2,654.00

Out of stock

Description

Manufactured in Italy by GR the ASA6000 is a 12 volt boom gate with a 6 metre boom, a 6-9 second opening time and a 100 percent duty cycle making it ideal for car parks and high use areas.. The ASA6000 boom gate is a great example of quality build but through our bulk buying power and no middleman an exceptionally low price. The ASA6000 has a built in control board with slow stop and a full range of safety features. Battery back up or solar power are no problem with the ASA6000.

FEATURES

• Residential/commercial use
• Opening time 6 to 9 seconds
• Steel cabinet protected by galvanic zinc coating and painted with epoxy powders

PROS

• Intensive use
• Fast opening and closing with programmable acceleration/deceleration ramps
• Ideal for busy entrances and car parks
• Option to install photocells and flashing lights directly on the barrier cabinet
• Works even during power cuts thanks to the optional back-up battery kit
• Obstacle detection and crush prevention
• Full accordance with EN 12453 standards
• Auto-learning of the stroke through built in limits
• Electronic board positioned on the upper compartment for quick and easy access

Boom gate Tips N Tricks

Download

ASA6000 Installation Manual

Download

Additional information

Weight 40 kg
Motor Voltage

12 volts DC

Standby Current

70mA

Maximum Current

3.0A

Motor Power

250W

Maximum Thrust

280Nm

Opening Time

6-9 Seconds

Maximum Gate Width

6000mm

Duty Cycle

100%

Height (mm)

1105mm

Width (mm)

447mm

Weight (kg)

70 kg

IP Rating

IP67
