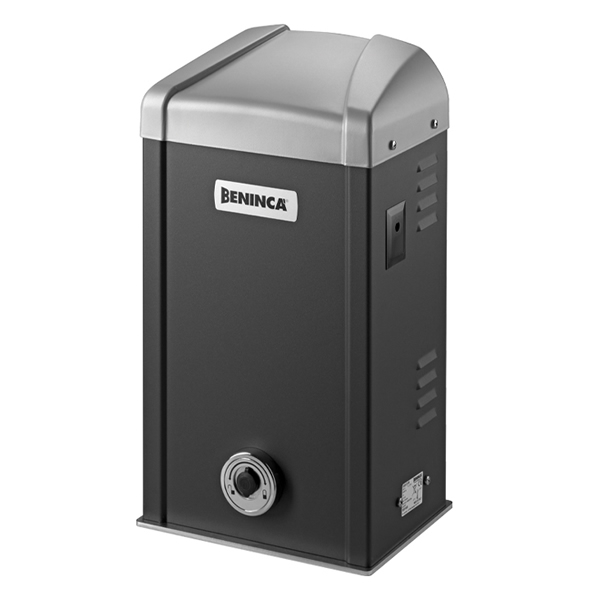

BISON25 – Industrial slider with inverter. (240 volt – 2500kg)

$3,606.00

In stock

Description

When you look for reliability in and automatic gate motor you have to look at anything Beninca and the BISON sliding gate openers are no exception. The BISON25 is a 240 volt motor designed for industrial sliding gates up to 2500kg in weight.
240 VOLT SLIDING ELECTRIC GATE OPERATOR- COMMERCIAL / INDUSTRIAL – 2500KG
  • Reliability of Gearmotors in oil bath
  • Robust, cataphoresis- treated polyester paint sheet housing for heavy-duty applications of industrial type
  • Manual release with key for max. security
  • Standard encoder (Obstacles detection sensor) for max. anti crushing operation safety
  • Inbuilt control unit for all demanding functions

Specifications

Weight 35 kg
Motor Voltage

240 volts AC

Standby Current

110mA

Maximum Current

8.0A

Motor Power

80W

Maximum Thrust

2500Nm

Operating Speed

7-19 Metres per minute

Maximum Gate Weight

2500 Kg

IP Rating

IP44

Height (mm)

612mm

Width (mm)

333mm

Length (mm)

278mm

Weight (kg)

31.0 Kg

Duty Cycle

75%

BISON install manual

Download

BISON logic control manual

Download
